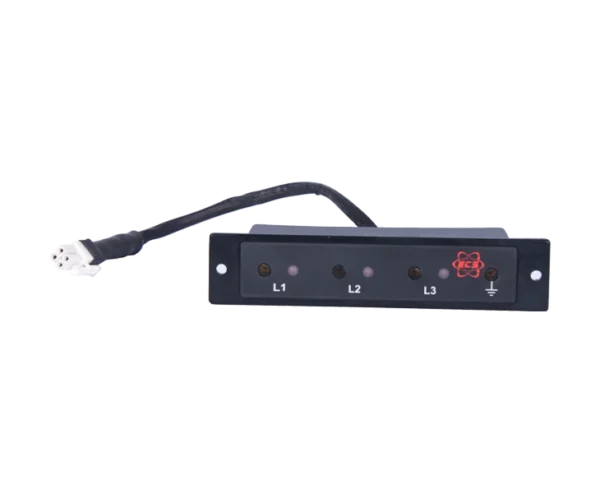

The Voltage Presence Indicating System (VPIS) is a compact, energy-efficient device designed to indicate the presence of voltage in high-voltage switchgear and electrical systems. With individual LED indicators for each phase, built-in voltage-limiting protection, and IEC 62271-206 compliance, VPIS provides an essential layer of operational safety and diagnostic support for modern power systems.
| Parameter | Specification |
|---|---|
| Line Voltage | 3.3 kV to 33 kV |
| Frequency | 50 Hz |
| Indication | 5 mm Red LED for R, Y, B phases |
| Phase Comparator | HR type with test point |
| IEC Compliance | IEC 62271-206 |
| No Indication | Below 10% of nominal voltage (Un) |
| Indication Start | Above 45% of nominal voltage (Un) |
| Degree of Protection | IP54 |
| Voltage Limiting Device | Gas discharge tube |
| Operating Temperature | -6°C to 55°C |
| Panel Cutout | 23 × 107 mm |
| External Supply | Not required |
| Test Point | Phase comparator output available |
