Wall Through Bushings

Seamless Power Transition. Built for High-Voltage Integrity. Wall Through Bushings engineered for safe, reliable, and efficient power transfer across walls in demanding industrial and utility environments.

Wall Through Bushings

Seamless Power Transition. Built for High-Voltage Integrity. Wall Through Bushings engineered for safe, reliable, and efficient power transfer across walls in demanding industrial and utility environments.

Overview

Our Wall Through Bushings are purpose-built for high-voltage applications, providing exceptional insulation and mechanical support. They ensure safe electrical transitions through walls while maintaining performance integrity and compliance with international standards. With robust construction and a choice of premium insulation materials, they are the ideal solution for substations, and industrial electrical installations.

Key Features

Versatile Insulation:
Choice of porcelain or hollow composite silicon for enhanced durability and adaptability.
Wide Operating Range:
Designed to handle voltages up to 245 kV and currents up to 3150 A* efficiently.
Robust Construction:
Designed for long-term operation in demanding industrial environments.

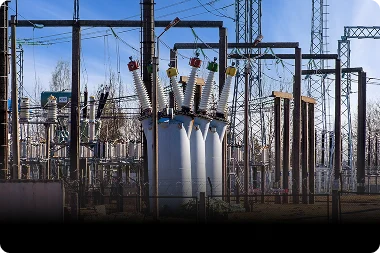

Applications

Technical Specifications

* Tailored made customization available upon request

Parameter Specification
Rated Voltage Up to 245 kV
Rated Current Up to 3150 A
Standard IEC 60137: 2017
Application Power Transformers, Industrial Applications
Type Air-to-Air
Insulator Porcelain, Hollow Composite Silicon
Connections Draw Lead, Draw Rod, Solid Stem Type

Compliance & Certification

  • Fully meets IEC 60137: 2017 for global quality and safety

Reliable measurement. Safe design. Trusted performance.
