We provide customized Solenoid Tube/Operators for a wide range of applications. Our solenoid armature assembly features high-quality, precise stroke control, a long service life, and a full range of products, including normally open, normally closed, and threaded or flanged connections
| Parameter | Specification |
|---|---|
| Core Material | Soft Ferromagnetic Material, as per application |
| Core/Armature’s Type | Standard, With fixed pin, With thread, C Slot, T Slot |
| Tube Material | EN series, brass or stainless steel |
| Seal Material | NBR / FKM / HNBR (other sealing materials on request) |
| Surface Coating | Zinc, Zinc Nickle, Electroless Nickle & As per Specification |
| Locking Nut | Standard (knurled), Hexagonal, Hexagonal with security screw, Closed, With rubber cap, For lever operation, Closed for push pull type |
| Ambient Temperature | -20°C ~ +120°C |
| Manual Overrides | Push type, Push type for high pressure, Screw type, Screw type with locking nut, Push type with Spring return, As per requirement |
| Rated Pressure | 50 bar to 350 bar, Customizable to application requirement |
| Pole Tube Outer Diameter | 10 mm to 35 mm |
| Push Rod | Removable & Fixed |
| Mechanical Stroke | Various working upto 13 mm |
| Power Supply | AC & DC |

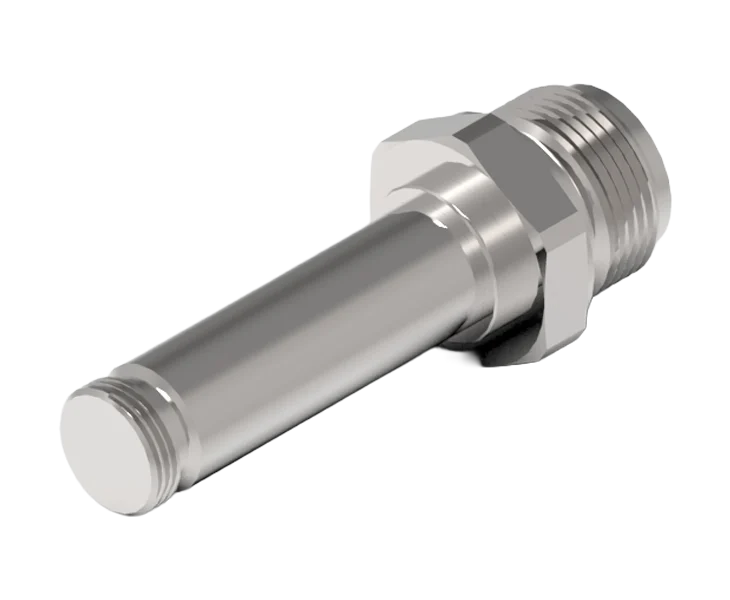

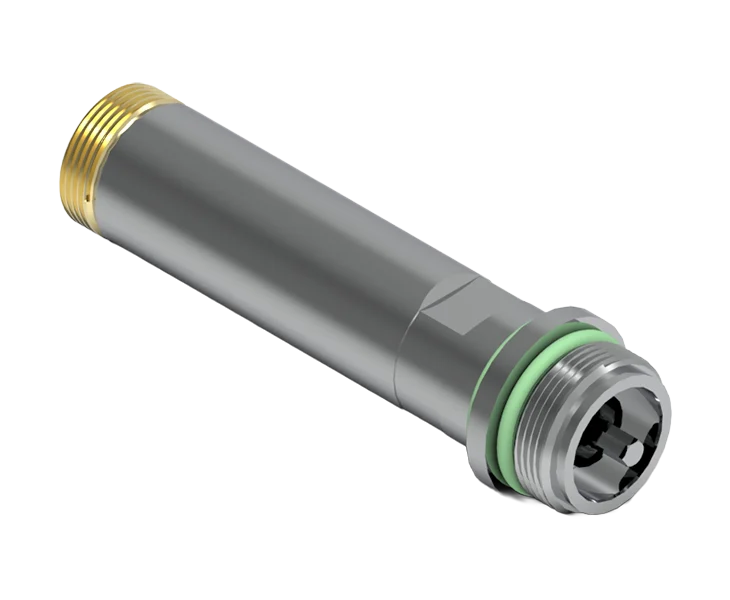

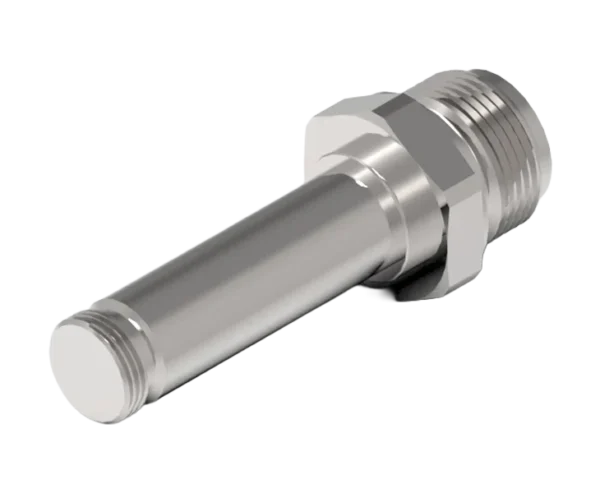

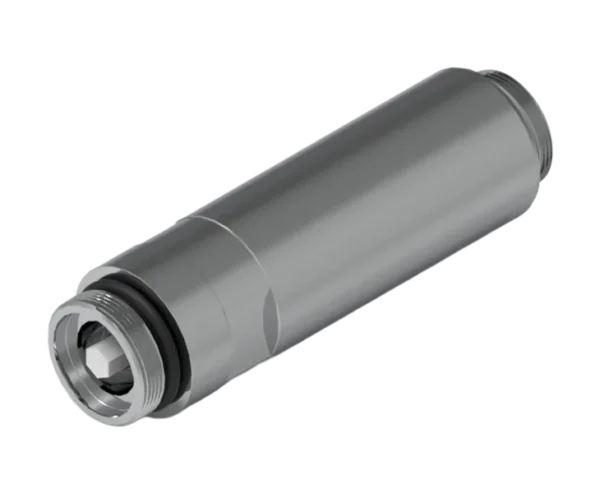

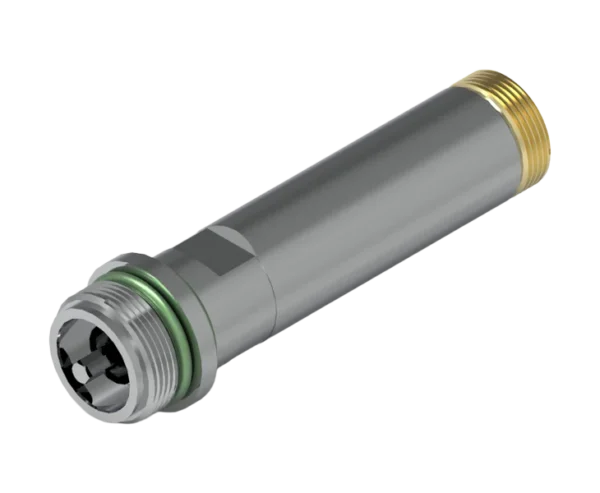

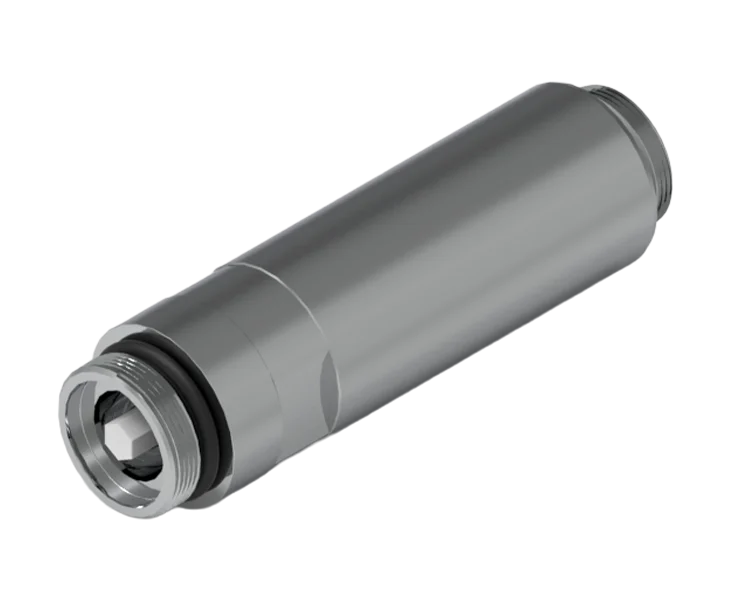

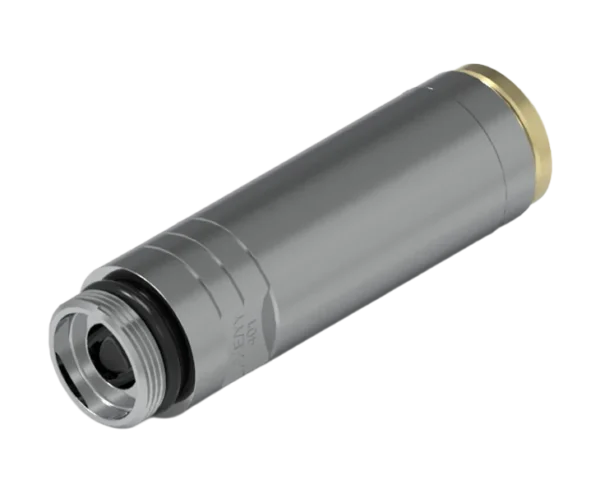

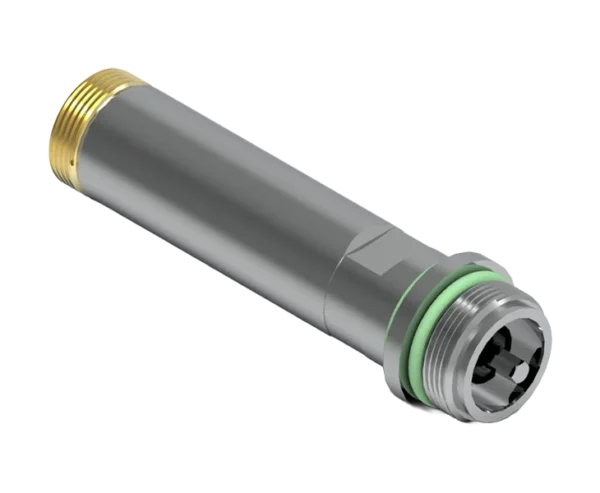

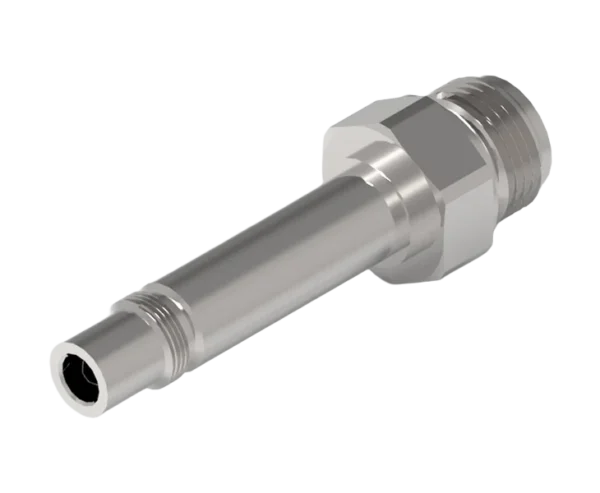

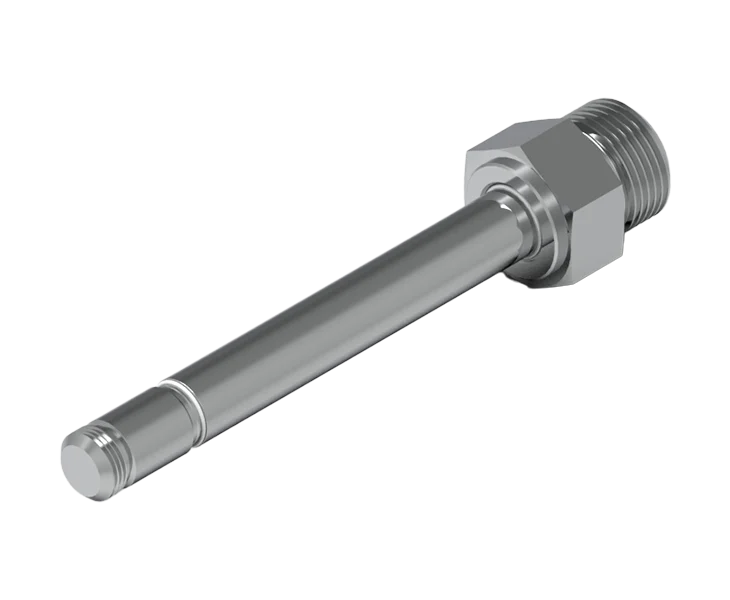

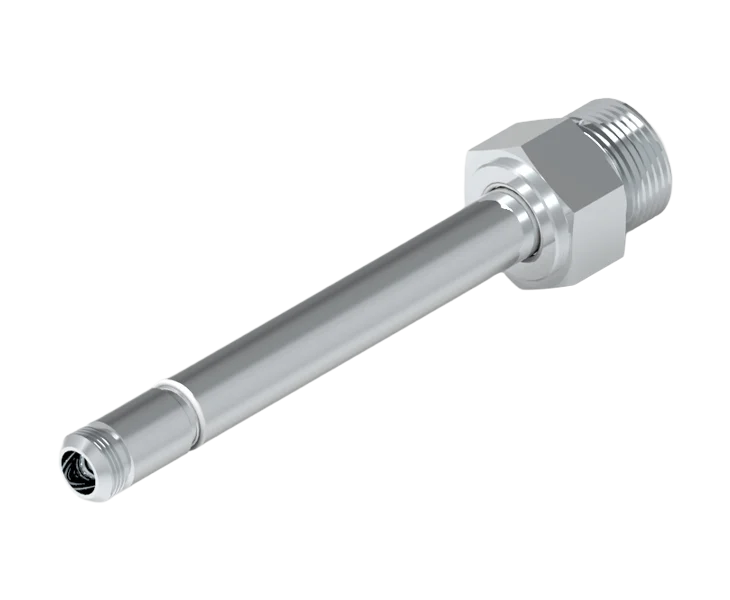

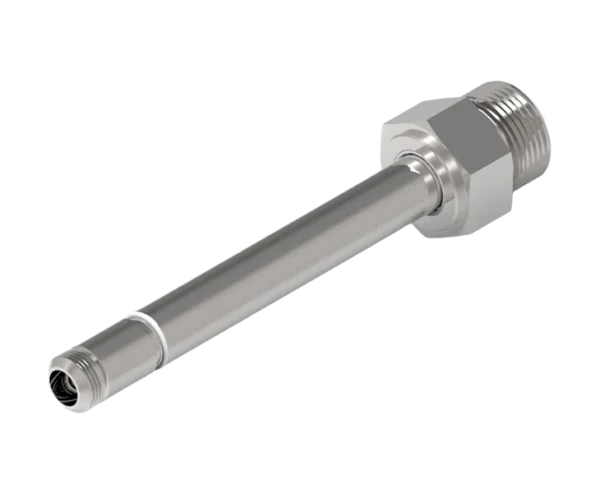

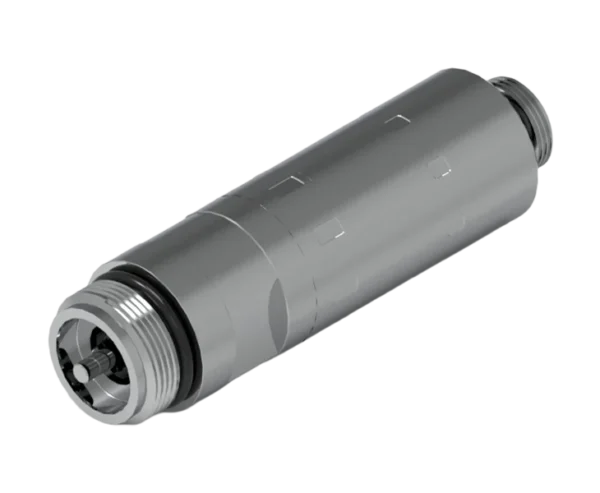

| Type of Application | PULL TYPE, PUSH TYPE, PUSH PULL TYPE, PROPORTIONAL TYPE |
