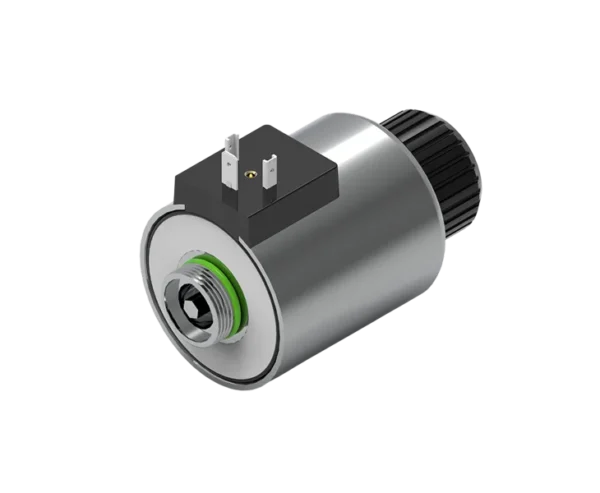

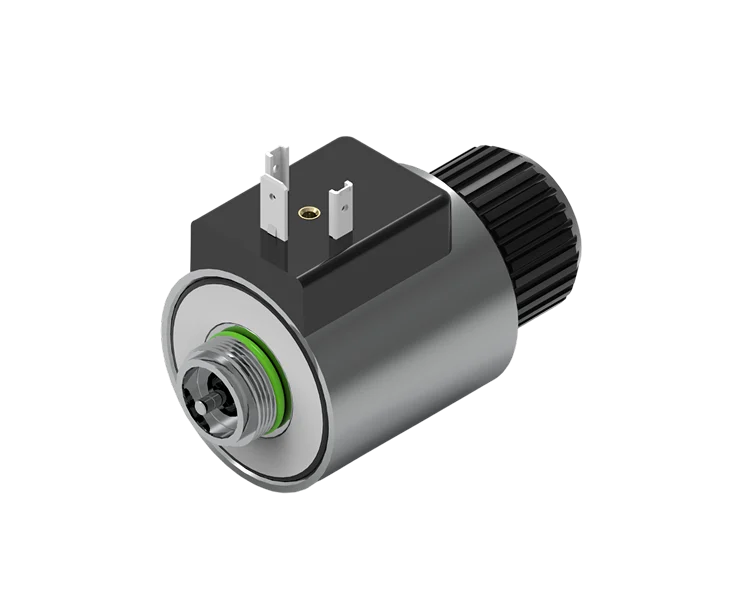

Solenoid (Size NG 04, 06 & 10)

Solenoid (Size NG 04, 06 & 10)

Overview

Our solenoids are designed to deliver dependable, high-precision performance across hydraulic, pneumatic, and electrical systems. Manufactured with high-purity copper windings and robust components, they generate a strong magnetic field with minimal power consumption, ensuring smooth valve operation and long-term reliability. We offer customizable solenoid coils, tubes, and armature assemblies in various configurations, including normally open, normally closed, threaded, and flanged options, to meet a wide range of industrial needs. With a focus on durability, accuracy, and consistent operation, our solenoid solutions provide reliable control for OEMs and industrial applications worldwide.

Key Features

High-efficiency copper-wound coils for stable, low-power operation
Strong magnetic force for accurate solenoid valve actuation
Customizable solenoid tubes and operator
Durable construction with long service life
Precise stroke control for reliable performance

Applications

Technical Specifications

Parameter Specification
Standard Voltage DC: 8V DC to 220V DC
AC: 110/220V AC
Duty Cycle ED100% (continuous)
Winding Insulation Class F / Class H / N 200℃ (IEC317-8)
Coil ID Option 21 mm to 32 mm
Protection Degree IP65, IP67 (EN60529), IP6K9K, others on request
Ambient Temperature -20℃ to +70℃
Frequency 50/60 Hz (AC)
Surge Suppression Options Bi-Diode / Uni-Diode / Rectifier options
Rated Power As per request
Customized Solution Available
Corrosion Protection FeZnNi8, FeZn & as per specification
Electrical Connections DIN43650, DEUTSCH DT04, AMP JUNIOR, METRIPACK 2, Flying Leads, Plug-in type or as per specification
Core Material Soft ferromagnetic material as per application
Core/Armature Type (Plunger) Standard, with fixed pin & as per requirement
Tube Material EN series, Brass, Stainless Steel
Seal Material NBR / FKM / HNBR (other sealing materials on request)
Surface Coating FeZn, FeZnNi8 & as per requirement
Locking Nuts for Coil Standard (knurled), Hexagonal & as per requirement
Ambient Temperature (Mechanical) -20℃ to +120℃
Manual Overrides Pushing type, High-pressure type, Screw type, Locking nut, Pushing type with spring return
Rated Pressure 200 bar to 300 bar (customizable)
Pole Tube Outer Diameter 20 mm to 32 mm
Push Rod Removable & Fixed
Mechanical Stroke 4 mm to 13 mm
Power Supply AC & DC
Type of Application Push Type
