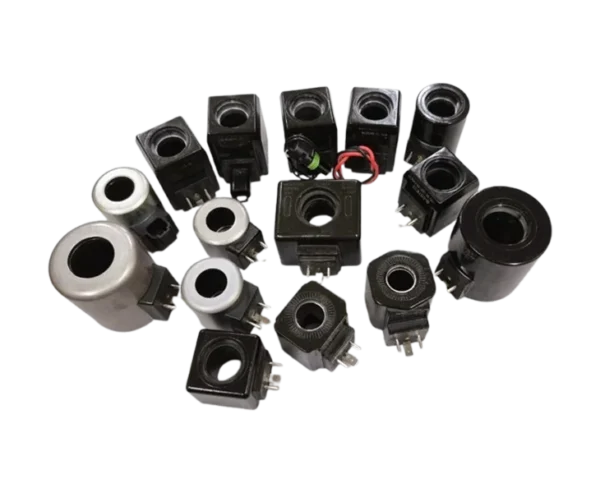

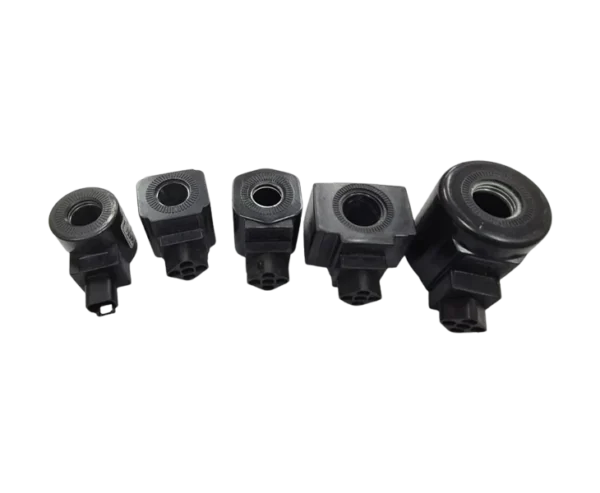

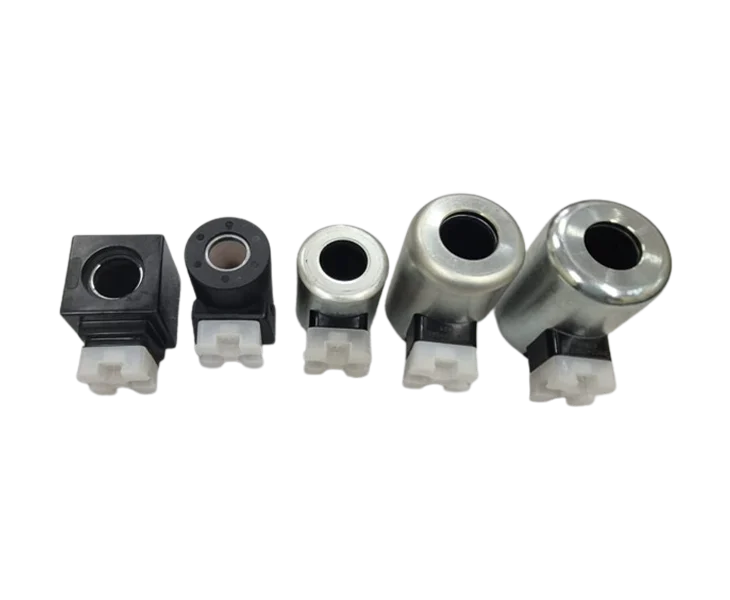

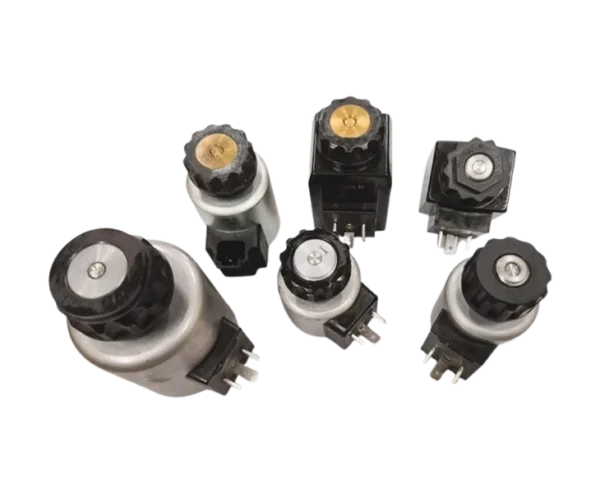

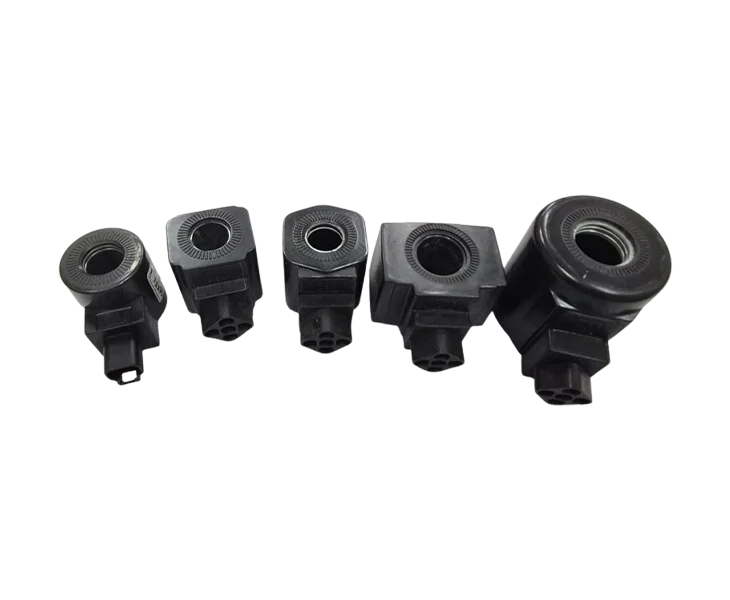

Solenoid coils drive hydraulic and pneumatic valve systems with efficiency and precision. Designed with high-purity copper wire, they offer stable operation, long service life, and low energy consumption across industrial applications.
| Parameter | Specification |
|---|---|
| Standard Voltage | DC：8V DC to 220V DC, AC：110/220V AC |
| Duty Cycle | ED100% (continuous) |
| Winding Insulation | Class F / H / N 200℃ (IEC317-8) |
| Coil ID Option | 12 mm to 32 mm |
| Protection degree | IP65, IP67（EN60529), IP6K9K |
| Ambient temperature | -20℃～+70℃ |
| Frequency | 50/60 HZ (AC) |
| Surge Suppression | Bi-Diode / Uni-Diode / Rectifier optional |
| Corrosion Protection | FeZnNi8, FeZn |
| Electrical Connections | DIN43650, AMP JUNIOR, METRIPACK 2, DEUTSCH DT04, FLYING LEADS, Plug In Type, Any other type of request |
| Customized solution | Available |
