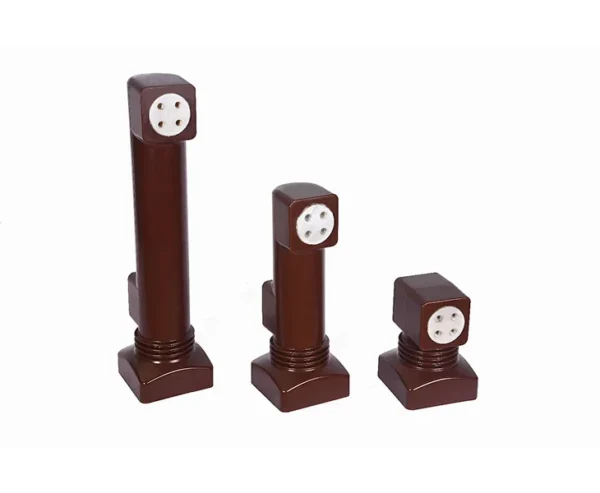

RYB Spout Bushing

RYB Spout Bushing

Overview

Our RYB Spout Bushings are manufactured using high-quality epoxy resin cast, ensuring superior dielectric strength, high impact resistance, and exceptional reliability for medium and high-voltage switchgear systems. With advanced APG and vacuum casting techniques, these bushings are void-free and PD tested, guaranteeing long-term performance in demanding applications.
As an experienced epoxy composite manufacturer, Epoxy House meticulously calibrates electrical, mechanical, and thermal properties to exceed industry requirements. Backed by our in-house HV/PD testing facility, we ensure every bushing meets the highest quality standards.

Key Features

Excellent Dielectric Properties:
Provides strong electrical insulation for high-voltage environments.
Impact Resistance:
Built to withstand mechanical shocks and ensure operational safety.
Thermal Stability:
Reliable performance under wide temperature variations.
Lightweight & Compact Design:
Simplifies installation and reduces equipment load.
Void-Free Construction:
Eliminates partial discharge risks for greater electrical reliability.
High Arc Strength & Creepage Distance:
Ensures maximum safety in high-voltage operations.
Mechanical Robustness:
Exceptional bending and tensile strength for structural integrity

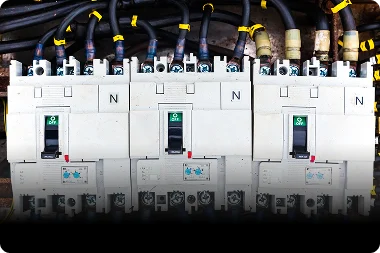

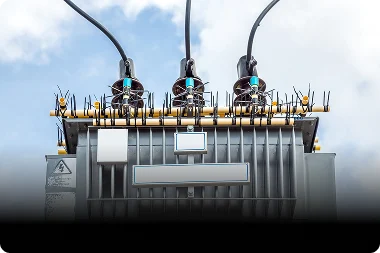

Applications

Technical Specifications

Parameter Details
Material Epoxy Resin Cast Suitable to MV switchgear
Applications Medium-Voltage (MV) Switchgear and Vacuum Circuit Breaker (VCB) panels
Manufacturing Methods Automatic Pressure Gelation (APG), Vacuum Casting
Standards IS 2099-1986/ IEC 60137-2017

Reliable measurement. Safe design. Trusted performance.

Request a Quote
RYB Spout Bushing
Download Datasheet
