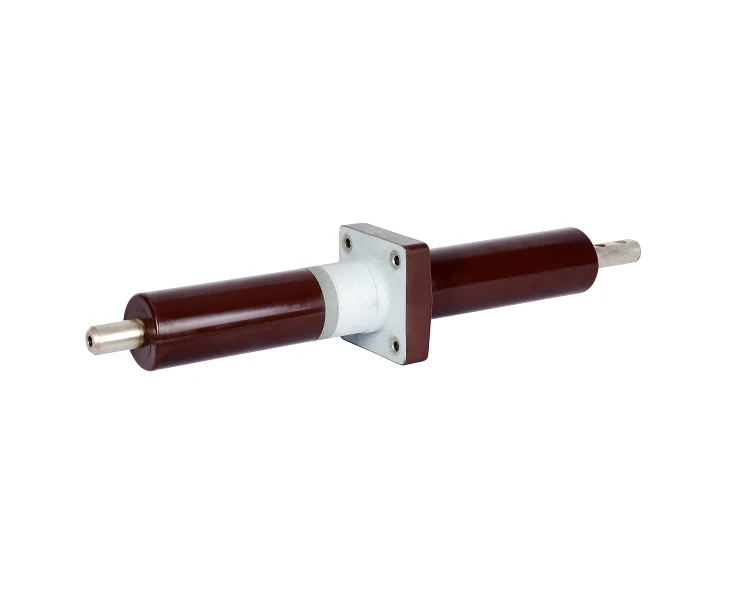

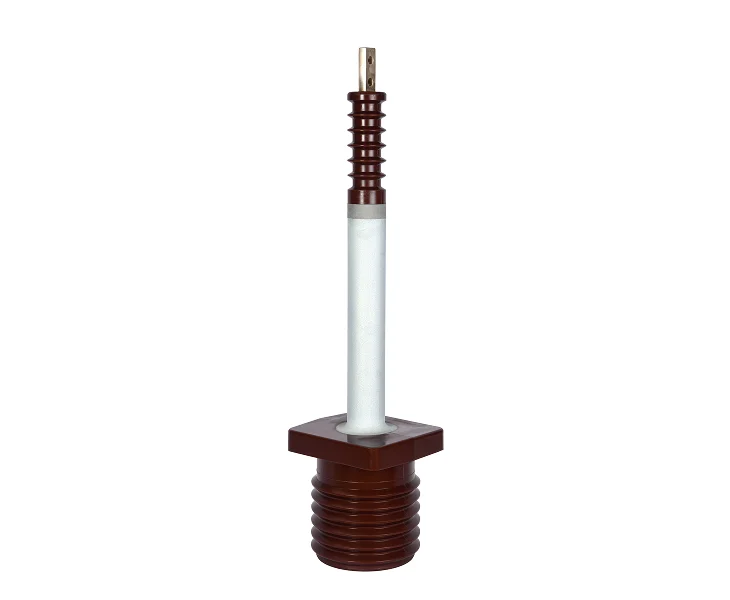

CT Bushings

CT Bushings

Overview

Our CT Bushings are meticulously engineered using epoxy resin cast technology to ensure high dielectric strength, mechanical robustness, and long-term reliability. These bushings are suitable for a wide range of applications, including switchgear, bus ducts, and transformers. Utilizing APG and vacuum casting methods, each bushing is cavity-free and PD tested, conforming to international standards and tailored to meet specific customer requirements.

Key Features

Excellent Dielectric Strength:
Provides superior insulation for high-voltage applications.
Robust Design:
Lightweight and compact, with high bending, tensile, and impact resistance.
Thermal Efficiency:
Low thermal capacity ensures stable operation under load.
Long Creepage Distance:
Enhanced insulation and arc resistance for reliable performance.
Precision Manufacturing:
Produced using APG and vacuum casting for a bubble-free, void-free finish.
Durable Material:
Epoxy resin cast ensures extended service life.
Standards Compliance:
Conforms to IS, BS, and IEC standards for global applications.

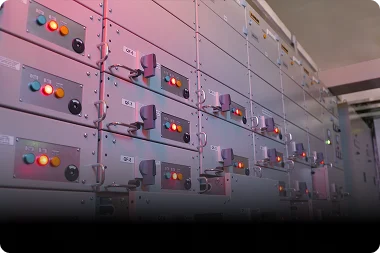

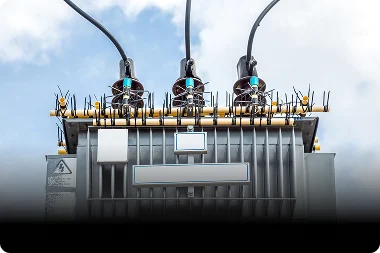

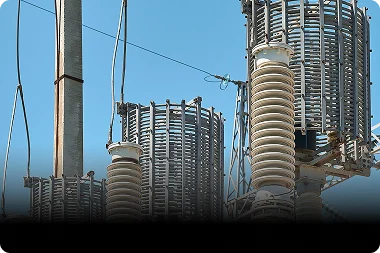

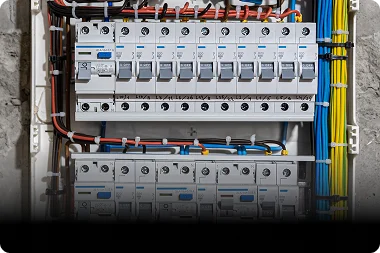

Applications

Technical Specifications

Parameter Details
BIL – Basic Impulse Level Up to 95 kVp
Maximum Current Rating Up to 3150 A
Voltage Class Up to 17.5 kV
Insulator Material Epoxy Resin Cast
Mounting Position As per design requirement
Top Terminal Stud Thread As per customer requirement
Standard IEC 60137

Reliable measurement. Safe design. Trusted performance.

Request a Quote
CT Bushings
Download Datasheet
